PAM Gap Analysis

The PAM Gap Analysis module assesses the maturity of your Privileged Access Management programme against industry frameworks. It walks you through a structured questionnaire and produces a findings report — showing which controls are compliant, partially implemented, or have gaps — together with a signed PDF export suitable for auditors or management review.

Requires Pro or Enterprise edition — not available on Community.

Supported Frameworks

Each assessment evaluates your PAM posture against the following frameworks simultaneously:

Framework	Description
NIST SP 800-53 Rev 5	US federal controls for access management and audit
NIST SP 800-63B	Digital identity guidelines focusing on authentication assurance
ISO/IEC 27001:2022	International information security management standard
BS EN ISO/IEC 29146:2026	Access management framework covering privileged access controls, entitlement lifecycle, role management, and access governance
ISO/IEC 24760	Identity management framework covering identity lifecycle, proofing, non-human identities, and governance
SOx IT General Controls	Sarbanes-Oxley ITGC requirements for financial systems (in-scope assessments only)
GxP (21 CFR 11 / EU Annex 11)	Regulatory requirements for life sciences and pharmaceutical environments (in-scope assessments only)
Cyber Essentials	UK NCSC-backed baseline certification, scoped to the privileged-access dimension of its five technical themes (in-scope assessments only)
HIPAA	US Security Rule technical and administrative safeguards for systems handling electronic protected health information (in-scope assessments only)

SOx, GxP, Cyber Essentials, and HIPAA controls are included only when you indicate those areas are in scope during the questionnaire. All other frameworks are evaluated for every assessment.

note

Cyber Essentials Plus is not supported. Cyber Essentials Plus certification requires independent technical verification (an external vulnerability scan and an internal authenticated sample test) carried out by a certifying body — evidence a self-assessment questionnaire tool cannot itself produce. Only the self-assessed Cyber Essentials framework is offered.

Assessment Lifecycle

DRAFT → IN_PROGRESS → COMPLETE

Status	Description
DRAFT	Assessment created but the questionnaire has not been started
IN_PROGRESS	Questionnaire is being completed; responses can still be edited
COMPLETE	Assessment has been finalised; responses and findings are locked

Once an assessment is marked Complete it cannot be modified. A PDF export can be downloaded at any time after completion.

Creating an Assessment

1. Navigate to Reports > PAM Gap Analysis
2. Click New Assessment
3. Fill in the details:

Field	Required	Description
Title	Yes	A name for this assessment (e.g., "Q1 2026 PAM Maturity Review")
Description	No	Additional context or scope notes

4. Click Create

The new assessment opens directly in the questionnaire wizard.

note

When you create a new assessment, OrbisID pre-populates the questionnaire with responses from the most recently completed assessment. This saves time on repeat assessments and lets you focus on what has changed.

Completing the Questionnaire

The questionnaire is divided into sections presented as a wizard. Navigate between sections using the step bar at the top of the page, or use Back and Next.

Sections

Section	Description
1. Scope & Context	Organisation size, industry, and which frameworks apply — this is where you toggle SOx, GxP, Cyber Essentials, and HIPAA in or out of scope
2. PAM Tooling	Whether a PAM tool is in use, which product, deployment maturity, and — if Cyber Essentials is in scope — patch cadence, unsupported software, and malware protection for your privileged access infrastructure (PAM vault/gateway, jump hosts, privileged access workstations)
3. Technology Stack Selection	Which technology areas are in scope for this assessment
3a–3g. Stack sub-sections	Per-stack questions for AD, Windows, Linux, Network, Databases, Cloud, and Other (shown only for selected stacks)
4. Access Governance	Lifecycle management, access reviews, separation of duties, role management approach, privileged access elevation process, and — when in scope — SOx ITGC, GxP, Cyber Essentials, and HIPAA governance questions
5. Identity Management	Identity proofing, non-human identity lifecycle, identity ownership, federated identity, identity reconciliation, and — if HIPAA is in scope — unique user identification
6. Authentication	MFA, password policies, credential strength, and — if Cyber Essentials is in scope — firewall/gateway administrative access hygiene
7. Session Management	Session recording, monitoring, and just-in-time access
8. Audit & Monitoring	Logging, alerting, SIEM integration, and — when in scope — GxP audit trail and HIPAA transmission-security/incident-response questions

note

SOx, GxP, Cyber Essentials, and HIPAA do not have their own wizard step. Once you mark a framework in scope in Scope & Context, its questions appear inline within whichever section above they naturally belong to, so the questionnaire reads as one continuous flow rather than a separate checklist per framework toggle. Findings and scores are still reported completely separately per framework in the Findings tab and PDF export — only the questionnaire's grouping works this way.

note

The Identity Management section (step 5) was added to support the BS EN ISO/IEC 29146:2026 and ISO/IEC 24760 frameworks. If you have existing assessments, these questions will be blank and the corresponding controls will be evaluated on available OrbisID product data alone until you complete a new assessment.

Question Types

Type	How to Answer
Yes / No	Click the Yes or No button
Select	Choose one option from the dropdown
Multi-select	Choose all applicable options
Text	Free-text response

Some questions are conditional and only appear based on earlier answers (for example, stack-specific questions only appear for stacks you selected).

Saving Progress

Click Save Responses at the bottom of each section to save your current answers. Responses are saved per-section. You can return to any section at any time while the assessment is IN_PROGRESS.

Completing the Assessment

When all sections are answered to your satisfaction:

1. Navigate to the final section
2. Click Complete Assessment
3. Confirm the prompt

OrbisID processes all responses, evaluates each framework control, and generates the findings. The assessment status changes to COMPLETE and the questionnaire becomes read-only.

note

Completing an assessment is irreversible. Ensure all responses are accurate before proceeding.

Delegating Sections to Subject Matter Experts

Requires Enterprise edition.

If parts of the questionnaire cover technology areas managed by other teams, you can delegate those sections to external contributors without giving them an OrbisID login.

Creating a Delegation Link

1. Open an IN_PROGRESS assessment
2. Click Delegate
3. Fill in the delegation details:

Field	Required	Description
Technology Area	No	Free-text label for the area being delegated (e.g., "Network Infrastructure")
Stack(s)	No	Specific stacks this delegation covers (for reference only)
Recipient Email	No	Email address to send the link to
Description	No	Instructions or context for the recipient
Link Expiry	Yes	How many days the link remains valid (default: 14)

4. Click Create Delegation

A unique link is generated. If you supplied an email address, OrbisID sends the link automatically. You can also copy the link and share it manually.

What the Recipient Sees

The recipient opens the link in any browser — no account required. They see a standalone questionnaire page showing only the questions relevant to their delegation. At the bottom of the page they must:

1. Enter their full name
2. Tick the acknowledgment checkbox confirming their responses are accurate
3. Click Submit & Sign

Submission is a one-time action. Once submitted, the link is consumed and responses are stored against the assessment.

Managing Delegations

The delegations panel on the assessment page shows all tokens created for the assessment:

Column	Description
Email	Recipient email (if provided)
Technology Area	Label given at creation
Created	Date the token was created
Expires	Date the link expires
Status	Pending, Submitted, or Expired
Signatory	Name entered by the recipient on submission

You can:

• Copy link — copy the URL to share manually
• Edit email — update the recipient address and resend
• Resend — send the link again to the current email address

Findings

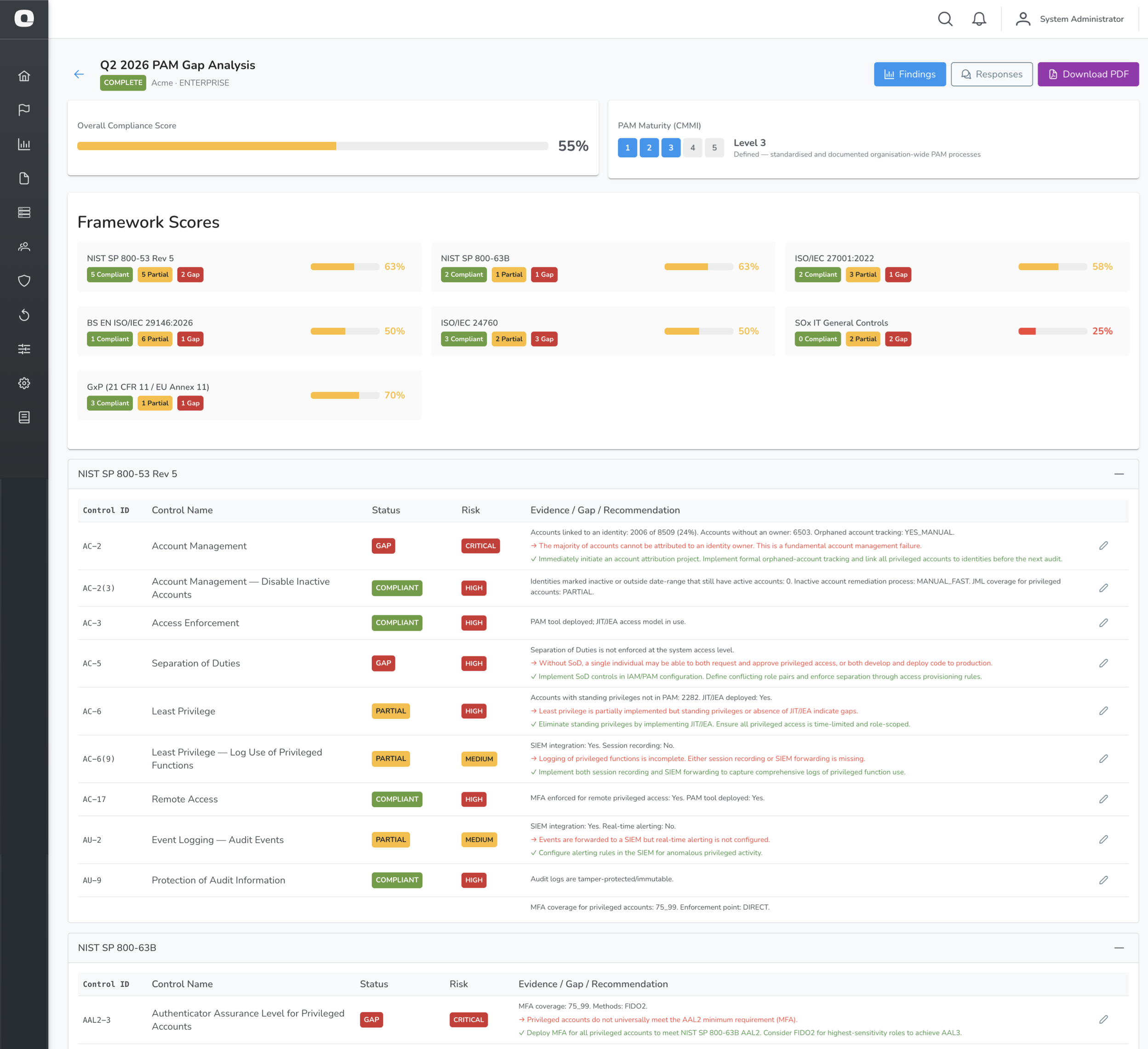

After an assessment is completed, navigate to Findings (the default view) to see the control-by-control evaluation.

Framework Summary

At the top of the findings page, each framework shows:

Element	Description
Compliant	Controls fully satisfied
Partial	Controls partially satisfied
Gap	Controls with identified gaps
N/A	Controls not applicable to this assessment
Score	Overall compliance percentage for the framework

Finding Detail

Each row in the findings table represents a single framework control:

Column	Description
Control ID	Framework reference (e.g., AC-2, A.9.2.3)
Control Name	Short name of the control
Status	Compliant, Partial, Gap, or Not Applicable
Risk	Critical, High, Medium, Low, or Informational
Evidence / Gap / Recommendation	Detail of what was found and what action is needed

Controls are grouped by framework. Click a framework panel header to collapse or expand it.

Overriding a Finding

If a finding does not accurately reflect your environment, an administrator can override it:

1. Click the override icon on a finding row
2. Select the corrected status
3. Enter a justification
4. Click Save Override

Overrides are recorded with the justification and are visible in the PDF export.

Responses

Click Responses to see a read-only view of all questionnaire answers, grouped by section.

This view shows:

• Assessor responses — answers entered directly in OrbisID
• Delegatee responses — one panel per submitted delegation, showing the signatory name, submission date, and their answers

Downloading the PDF Report

Click Download PDF to generate a full assessment report. The PDF includes:

Section	Content
Cover page	Assessment title, date, licensed organisation, and edition
Executive Summary	Overall maturity score (CMMI level), framework scores, and key risk indicators
AI-Generated Risk Summary	Short plain-English narrative of the findings, generated when the assessment completes (see AI Assistant) — omitted entirely if the feature is off
Framework Findings	Control-by-control results for each applicable framework
Risk Summary	Findings grouped by risk level
Remediation Roadmap	Prioritised list of recommended actions
Appendix A — Methodology	Explanation of the scoring approach
Appendix B.1 — Assessor Responses	Full questionnaire Q&A from the primary assessor
Appendix B.2+ — Delegatee Responses	One appendix section per submitted delegation, including signatory name and submission date

The PDF is generated on demand and reflects the assessment state at the time of download. If the AI Risk Narrative is enabled, a Regenerate button on the assessment page refreshes the cached narrative before your next download — it does not rewrite PDFs you've already exported.

Threat Detections and Gap Analysis

If you have deployed Endpoint Sensors, OrbisID automatically incorporates your Threat Detection activity as evidence when evaluating monitoring controls. No extra configuration is required.

How it works

When you complete an assessment, OrbisID takes a snapshot of your current Threat Detection state:

Data point	Used for
Active Endpoint Sensors (online count)	Evidence that real-time Windows endpoint monitoring is in place
Open Threat Detections	Shows the engine is actively generating detections
Confirmed Threat Detections	Analyst review evidence — demonstrates detections are being triaged

This data is factored into the following controls:

Control	Framework	Effect
AU-2 Event Logging — Audit Events	NIST 800-53	Active sensors + SIEM = Compliant. Active sensors without SIEM = Partial (with recommendation to forward via CEF syslog)
AC-6(9) Log Use of Privileged Functions	NIST 800-53	Active sensors count as partial logging coverage for Windows endpoints
A.8.15 Logging	ISO/IEC 27001	Active sensors count toward the alerting dimension
29146-8.1 Access Event Monitoring	BS EN ISO/IEC 29146:2026	Active sensors count as real-time alerting evidence. Active sensors + SIEM = Compliant
ITGC-OP-1 Monitoring of Privileged Activity	SOx ITGC	Active sensors + confirmed detections = Compliant. Active sensors without SIEM = Partial (SOx requires 7-year log retention via a SIEM)
HIPAA-164.312(b) Audit Controls	HIPAA	Active sensors count toward the real-time alerting requirement alongside SIEM integration and immutable logs
HIPAA-164.308(a)(6) Security Incident Procedures	HIPAA	Confirmed Threat Detections demonstrate active incident triage; active sensors alone provide partial credit

Answering "No" to monitoring questions

If you answer No to "Is there real-time alerting configured for anomalous privileged activity?" or "Are privileged access events forwarded to a SIEM?", the recommendation for affected controls will include guidance on how OrbisID Endpoint Sensors can help close the gap — including using the built-in CEF syslog integration to forward detections to a SIEM.

Building SOx evidence with Threat Detections

For SOx in-scope assessments, the ITGC-OP-1 control requires evidence that privileged activity is both monitored and reviewed. To satisfy both:

1. Deploy at least one Endpoint Sensor (provides the monitoring evidence)
2. Confirm at least one genuine Threat Detection in the Threat Detections page (provides the analyst-review evidence)
3. Enable CEF syslog forwarding to a SIEM for log retention (Administration → Settings)

BS EN ISO/IEC 29146:2026 — Access Management Framework

BS EN ISO/IEC 29146:2026 is the British Standard adoption of the international access management framework. It focuses specifically on how organisations govern, control, and monitor access rights — making it a natural fit for PAM programmes.

Controls Evaluated

Control ID	Control Name	Key Evidence Sources
29146-5.2	Access Management Policy	Formal Access Management Policy documented; formal definition of privileged access in place
29146-6.1	Entitlement Lifecycle Management	JML process covering privileged access; inactive identity remediation SLA; OrbisID detected inactive identities with active accounts
29146-6.2	Privileged Access Controls	PAM tool deployed; JIT/JEA in use; privileged elevation process (PAM-managed preferred); PAM coverage percentage from OrbisID
29146-6.3	Access Certification	Review frequency; risk-based stratification (high-risk accounts certified more frequently)
29146-7.1	Separation of Duties	SoD enforced at system access level
29146-7.2	Role and Entitlement Management	Role management approach (formal RBAC or entitlement catalogue); formal change management for access changes
29146-7.3	Emergency Access Management	Documented and tested break-glass procedure
29146-8.1	Access Event Monitoring	SIEM integration; real-time alerting; OrbisID Endpoint Sensors count as alerting evidence

Key Questions (Section 4 — Access Governance)

Three questions were added to the Access Governance section specifically to support this framework:

Question	Purpose
Does your organisation have a formally documented and approved Access Management Policy?	Drives 29146-5.2
How are roles and access permissions managed?	Drives 29146-7.2 (RBAC Formal, Entitlement Catalogue, etc.)
How is temporary privileged access elevation requested and approved?	Drives 29146-6.2 (PAM-managed elevation is the strongest control)

ISO/IEC 24760 — Identity Management Framework

ISO/IEC 24760 is a multi-part international standard that defines the framework for managing identities throughout their lifecycle — from proofing and provisioning through to de-provisioning and reconciliation. It applies to both human and non-human identities.

Controls Evaluated

Control ID	Control Name	Key Evidence Sources
24760-3.1	Identity Lifecycle Management	JML process; identity proofing before provisioning; OrbisID detected inactive identities with active accounts
24760-3.2	Identity Proofing and Binding	Identity proofing process in place; account-to-identity linkage percentage from OrbisID
24760-3.3	Orphaned Identity Detection	Orphaned account tracking approach; OrbisID unlinked account count
24760-3.4	Identity Information Quality	Named identity owners defined; account-to-identity linkage percentage; total identity count from OrbisID
24760-3.5	Non-Human Identity Management	NHI lifecycle management approach; OrbisID non-human account count
24760-4.2	Identity Governance	Named identity owners defined; Access Management Policy in place
24760-5.1	Federated Identity Management	Federation model (fully/partially/not federated); SSO deployed
24760-5.2	Identity Reconciliation	Identity reconciliation frequency across systems

Key Questions (Section 5 — Identity Management)

A dedicated Identity Management section (step 5 in the wizard) was added for this framework:

Question	Purpose
Is there a formal identity proofing process before accounts are provisioned?	Drives 24760-3.1 and 24760-3.2
How are non-human identity lifecycles managed?	Drives 24760-3.5 (automated lifecycle is highest maturity)
Is a named owner formally defined for every identity?	Drives 24760-3.4 and 24760-4.2
Does the organisation use federated identity management?	Drives 24760-5.1
How frequently is identity data reconciled across systems?	Drives 24760-5.2

OrbisID Data Used

Both frameworks make extensive use of live OrbisID metrics captured at assessment completion:

Metric	Controls
Account-to-identity linkage %	24760-3.2, 24760-3.4
Unlinked (orphaned) account count	24760-3.3
Non-human account count	24760-3.5
Inactive identities with active accounts	24760-3.1, 29146-6.1
PAM-managed account %	29146-6.2

Cyber Essentials

Cyber Essentials is the UK NCSC-backed baseline cyber security certification, covering firewalls, secure configuration, security update management, user access control, and malware protection. Because OrbisID is a PAM-focused product, each theme is scoped specifically to the privileged-access dimension rather than general estate-wide security hygiene — for example, patch management is assessed for your PAM vault/gateway and jump hosts, not your whole server estate.

Controls Evaluated

Control ID	Control Name	Key Evidence Sources
CE-1	Firewalls	Admin interfaces for boundary firewalls/gateways not exposed to the Internet (or MFA-protected); default credentials changed
CE-2	Secure Configuration of Privileged Accounts	Default/unnecessary administrative accounts removed; default credentials changed; OrbisID unclassified-entitlement count
CE-3	Security Update Management for Privileged Access Infrastructure	Patch cadence for the PAM vault/gateway, jump hosts, and privileged access workstations; unsupported software removed; OrbisID scan failure rate
CE-4	User Access Control	Administrative accounts kept separate from standard-use accounts; PAM tool deployed; MFA coverage; OrbisID standing/shared privileged account counts
CE-5	Malware Protection on Privileged Access Pathways	Anti-malware (or allow-listing/sandboxing) deployed on PAM jump servers, bastion hosts, and privileged access workstations

Key Questions

Cyber Essentials questions are embedded across the PAM Tooling, Access Governance, and Authentication sections, shown only once you mark Cyber Essentials in scope:

Question	Section	Purpose
Are admin interfaces for firewalls/gateways protected from the Internet?	Authentication	Drives CE-1
Are default credentials changed on firewalls, network devices, and privileged accounts?	Authentication	Drives CE-1, CE-2
Are default/unnecessary privileged accounts removed?	Access Governance	Drives CE-2
Are administrative accounts kept separate from standard accounts?	Access Governance	Drives CE-4
How quickly are patches applied to your privileged access infrastructure?	PAM Tooling	Drives CE-3
Is unsupported software removed from your privileged access infrastructure?	PAM Tooling	Drives CE-3
Is malware protection deployed on PAM jump servers/privileged access workstations?	PAM Tooling	Drives CE-5

HIPAA

HIPAA controls map to the Security Rule's technical safeguards (§164.312) and administrative safeguards (§164.308) as they relate to privileged access to systems handling electronic protected health information (ePHI).

Controls Evaluated

Control ID	Control Name	Key Evidence Sources
HIPAA-164.312(a)(2)(i)	Unique User Identification	Unique user IDs confirmed for ePHI system access; OrbisID shared privileged account count
HIPAA-164.312(a)(2)(iii)	Automatic Logoff	Session timeout / automatic logoff policy enforcement
HIPAA-164.312(a)(2)(iv)/(e)(1)	Encryption and Decryption / Transmission Security	Encryption at rest; encryption in transit for privileged/administrative access
HIPAA-164.312(b)	Audit Controls	SIEM integration; immutable audit logs; real-time alerting; OrbisID Endpoint Sensors count as alerting evidence
HIPAA-164.312(d)	Person or Entity Authentication	MFA coverage for privileged access to ePHI systems
HIPAA-164.308(a)(4)	Information Access Management — Minimum Necessary	Minimum-necessary access provisioning standard; OrbisID standing privileges count
HIPAA-164.308(a)(3)	Workforce Security — Termination Procedures	Inactive-identity remediation process and SLA; OrbisID inactive-identity-with-active-account count
HIPAA-164.308(b)	Business Associate Contracts	Business Associate Agreements tracked for third parties with privileged access
HIPAA-164.308(a)(6)	Security Incident Procedures	Documented breach-notification procedure; OrbisID Threat Detection activity as evidence of active triage

Key Questions

Embedded across Identity Management, Access Governance, and Audit & Monitoring, shown only once HIPAA is marked in scope:

Question	Section	Purpose
Does every workforce member use a unique user identifier, with no shared or generic logins?	Identity Management	Drives HIPAA-164.312(a)(2)(i)
Is access provisioned on a minimum-necessary basis?	Access Governance	Drives HIPAA-164.308(a)(4)
Are Business Associate Agreements tracked for third parties with privileged access?	Access Governance	Drives HIPAA-164.308(b)
Is ePHI encrypted in transit for privileged/administrative sessions?	Audit & Monitoring	Drives HIPAA-164.312(a)(2)(iv)/(e)(1)
Is there a documented security incident/breach notification procedure?	Audit & Monitoring	Drives HIPAA-164.308(a)(6)

Assessment List

Navigate to Reports > PAM Gap Analysis to see all assessments.

Column	Description
Title	Assessment name
Status	DRAFT, IN_PROGRESS, or COMPLETE
Frameworks	Which frameworks were evaluated, including SOx, GxP, Cyber Essentials, and HIPAA when in scope
CMMI Level	Maturity level (1–5) calculated at completion
Created	Date the assessment was created
Completed	Date the assessment was finalised

Click an assessment row to open it.

Deleting an Assessment

1. Click the delete icon on an assessment row
2. Confirm the prompt

Deletion is permanent and removes all responses and findings. It is recorded in the Audit Log.
